ZXMN3A01F is a SOT23 package N-channel enhancement mode MOSFET with low ON resistance, fast switching speed, low threshold, low gate drive, ideal for high efficiency, low voltage, power management applications.

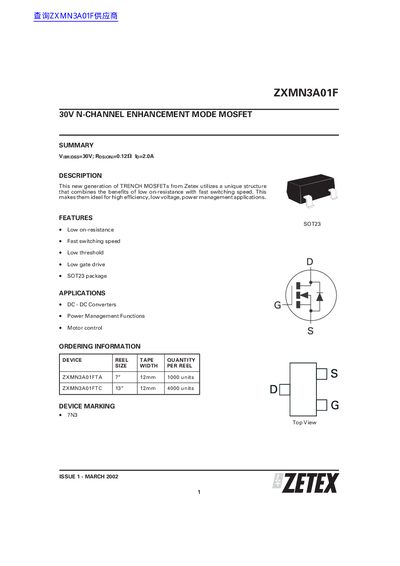

The document describes the ZXMN3A01F as a new generation of Trench MOSFETs from Zetex. It highlights features such as low on-resistance (0.120 Ohm typical), fast switching speed, and suitability for DC-DC converters and motor control.
| Drain-Source Voltage | 30 V |
|---|---|
| Typical On-Resistance | 0.12 Ohm |
| Operating Temperature Range | -65 to +150 °C |
| Package Type | SOT23 |
The maximum continuous drain current is 2.0 A when the gate-source voltage is 10 V and the temperature is 25°C.
The maximum drain-source voltage rating is 30 V.
The device operates and stores within a temperature range of -65 to +150 °C.
