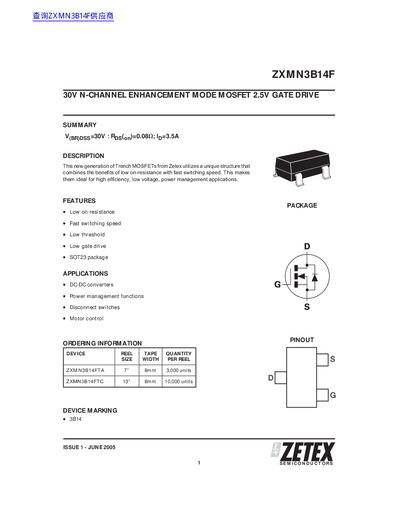

Zetex ZXMN3B14F 30V N-Channel MOSFET Datasheet

About this manual

The ZXMN3B14F is a 30V N-Channel Enhancement Mode MOSFET designed for high efficiency and low voltage power management applications. It features a unique Trench MOSFET structure that combines low on-resistance with fast switching speed, making it suitable for DC-DC converters, power management functions, and motor control.

What's inside

• Description
• Features
• Absolute Maximum Ratings
• Electrical Characteristics
• Typical Characteristics
• Package Outline
• Package Dimensions

Specifications

Frequently asked questions

What is the maximum gate drive voltage?

The device supports a 2.5V gate drive.

What is the maximum continuous drain current for this MOSFET at 25°C?

The maximum continuous drain current is 3.5 A when the gate-source voltage is 4.5 V and the temperature is 25°C.

What is the maximum power dissipation at a temperature of 25°C?

The maximum power dissipation is 1 W when the ambient temperature is 25°C.

What is the maximum operating and storage temperature range?

The device operates and stores within a temperature range of -55 to +150 °C.
