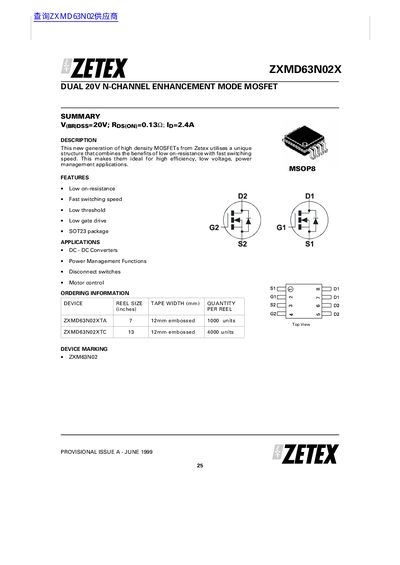

Zetex ZXMD63N02X Dual 20V N-Channel Enhancement Mode MOSFET Datasheet

ZXMD63N02 is a dual channel 20V N-channel enhancement mode MOSFET with low on-resistance and fast switching speed, ideal for high efficiency, low voltage, power management applications.

Brand: Zetex
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 7
File format: PDF
File size: 179 KB
Published: 02 July, 2012
Updated: 30 September, 2023
MD5 checksum: 468184AD1B539B50F749AF223D3CC749
PDF: Zetex ZXMD63N02X Dual 20V N-Channel Enhancement Mode MOSFET Datasheet PDF

About this manual

This document is a datasheet for the Zetex ZXMD63N02X, a dual 20V N-channel enhancement mode MOSFET. The device utilizes a unique structure to combine low on-resistance with fast switching speed, making it ideal for high efficiency, low voltage power management applications such as DC-DC converters and motor control.

What's inside

Summary
Features
Applications
Ordering Information
Absolute Maximum Ratings
Electrical Characteristics
Typical Characteristics
Package Dimensions

Specifications

Drain-Source Voltage	20 V
On-Resistance	0.13Ω
Package Type	SOT23
Operating Temperature Range	-55 to +150 °C

Frequently asked questions

What are the main applications for the ZXMD63N02X?

The device is suitable for DC-DC converters, power management functions, disconnect switches, and motor control.

What is the maximum junction temperature?

The maximum junction temperature is +150 °C.
