IDT2305 is a high-precision clock buffer from IDT company, which supports 10MHz to 133MHz frequency and has 5 output ports. It has zero delay output and the output clock jitter is less than 200ps.

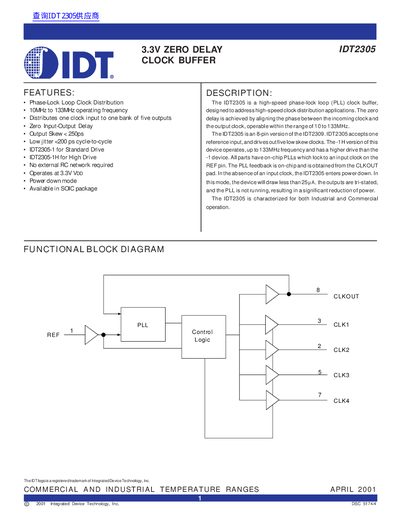

The IDT IDT2305 is a high-speed phase-lock loop (PLL) clock buffer designed for high-speed clock distribution applications. It accepts one reference input and drives five low skew clocks, achieving zero input-output delay by aligning the phase between the incoming and output clocks. The device operates within a frequency range of 10 to 133MHz and is available in an 8-pin SOIC package.
| Operating Frequency | 10MHz to 133MHz |
|---|---|
| Supply Voltage | 3.3V |
| Output Skew | < 250ps |
| Jitter | < 200 ps |
| Package Type | 8-pin SOIC |
| Operating Temperature (Industrial) | -40 to +85 °C |
The device supports an operating frequency range of 10MHz to 133MHz.
No, the device features on-chip PLLs and does not require an external RC network.
