ixfk ixfn is a mosfet produced by ixys company. Its features include international standard packaging, low rds (on), high dv/dt and low trr, and applications in dc-dc converters, synchronous rectification, battery chargers, switched-mode and resonant-mode power supplies, dc choppers, temperature and lighting controls, etc.

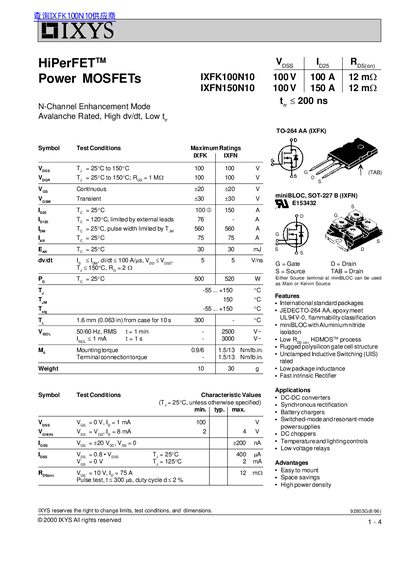

This document provides technical specifications for the IXYS IXFK100N10 and IXFN150N10 N-Channel Enhancement Mode Power MOSFETs. The devices are rated at 100V and 150V respectively, with continuous currents of 100A and 150A, and a low on-resistance of 12mΩ. They are designed for applications such as DC-DC converters, synchronous rectification, and battery chargers.
| Voltage Rating | 100 V (IXFK) / 100 V (IXFN) |
|---|---|
| On-Resistance | 12 mΩ |
| Package Type | TO-264 AA |
| Operating Temperature | -55...+150 °C |
The maximum operating temperature is +150°C.
The maximum continuous drain current is 100 A for the IXFK model and 150 A for the IXFN model.
The maximum power dissipation is 500 W for the IXFK model and 520 W for the IXFN model.
