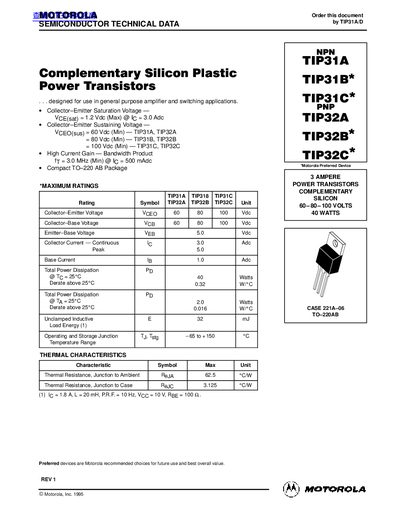

MOTOROLA Semiconductor NPN TIP31A/TIP31B/TIP31C PNP TIP32A/TIP32B/TIP32C TECHNICAL DATA

This datasheet is about Motorola bipolar power transistors, including models, maximum ratings, etc.

Brand: Motorola
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 6
File format: PDF
File size: 197 KB
Published: 12 June, 2012
Updated: 01 October, 2023
MD5 checksum: AA233AAEAED17645F3B6E6AAB933ED3D
PDF: MOTOROLA Semiconductor NPN TIP31A/TIP31B*/TIP31C* PNP TIP32A/TIP32B*/TIP32C* TECHNICAL DATA PDF

About this manual

This document provides technical specifications for the Motorola TIP31A/D, TIP31B*, TIP31C*, TIP32A, TIP32B*, and TIP32C* complementary silicon plastic power transistors. These devices are designed for use in general purpose amplifier and switching applications.

What's inside

Maximum Ratings
Thermal Characteristics
Electrical Characteristics
Dynamic Characteristics
Safe Operating Area
Package Dimensions

Specifications

Collector-Emitter Voltage (TIP31A/TIP32A)	60 Vdc
Collector-Emitter Voltage (TIP31B/TIP32B)	80 Vdc
Collector-Emitter Voltage (TIP31C/TIP32C)	100 Vdc
Total Power Dissipation (Case Temp 25°C)	40 Watts
Collector Current — Continuous	3.0 Adc
Current-Gain Bandwidth Product (Min)	3.0 MHz

Frequently asked questions

What is the maximum continuous collector current for these transistors?

The maximum continuous collector current is 3.0 Adc.

What is the maximum total power dissipation at a case temperature of 25°C?

The maximum total power dissipation is 40 Watts at a case temperature of 25°C.

What is the minimum operating and storage junction temperature range?

The operating and storage junction temperature range is from -65 to +150 °C.
