The MC10E/100E111 is a low skew 1-to-9 differential driver, designed with clock distribution in mind. It accepts one signal input, which can be either differential or else single-ended if the VBB output is used. The signal is fanned out to 9 identical differential outputs. An enable input is also provided. A HIGH disables the device by forcing all Q outputs LOW and all Q outputs HIGH.

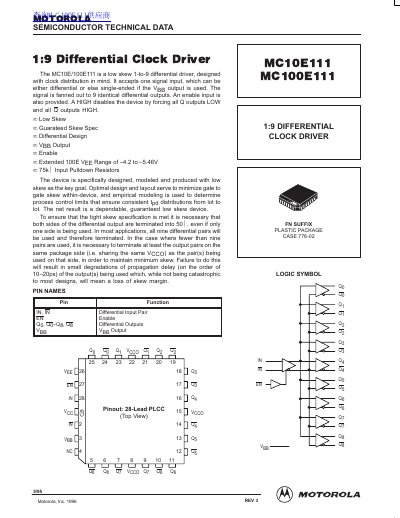

This document is a technical datasheet for the Motorola MC10E111 and MC100E111, which are 1-to-9 differential clock drivers designed for low skew applications. The devices accept a single differential or single-ended input and fan it out to nine identical differential outputs, featuring an enable input to control the signal path.
| Function | 1-to-9 differential driver |
|---|---|
| Package Type | 28-Lead PLCC |
| Input Sensitivity | 50 mV |
| Within-Device Skew | 25 ps (Typ) |
| Supply Current (10E) | 48 mA (Typ) |
It is a low skew 1-to-9 differential driver designed for clock distribution.
Yes, the input can be single-ended if the VBB output is used.
The device comes in a 28-Lead PLCC package.
