MC10E/100E116 is a quint differential line receiver with emitter-follower outputs. An internally generated reference supply (VBB) is available for single-ended reception. It has a maximum propagation delay of 500ps, VBB supply output, dedicated VCCO pin for each receiver, extended 100E VEE range of -4.2V to -5.46V, and 75kΩ input pulldown resistors.

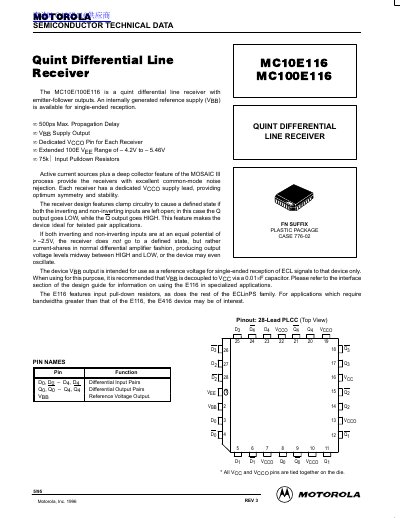

This document is a technical datasheet for the Motorola MC10E116 and MC100E116, which are quint differential line receiver devices. These components utilize an internally generated reference supply (VBB) available for single-ended reception and feature emitter-follower outputs.
| Propagation Delay (Max) | 500 ps |
|---|---|
| Package Type | 28-Lead PLCC |
| Operating Temperature Range | -40°C to +85°C |
| Power Supply Current (Typ) | 35 mA |
The maximum propagation delay is 500 ps.
They are referred to as Z5kGQ Input Pulldown Resistors.
It is recommended to use a 0.01uF capacitor.
