This datasheet provides the data of MC10E/100E122, including pinout, electrical characteristics, package etc.

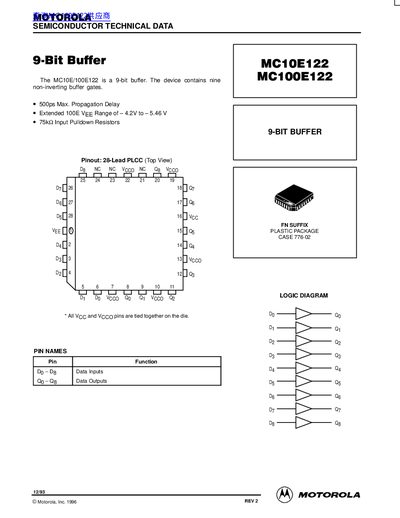

The document describes the MC10E122 and MC100E122 as a 9-bit buffer containing nine non-inverting buffer gates. The devices feature a maximum propagation delay of 500ps and are available in a 28-Lead PLCC package (FN Suffix). They support an extended VEE range for the 100E variant from -4.2V to -5.46V.
| Propagation Delay (Max) | 500ps |
|---|---|
| Input Pulldown Resistors | 75kQ |
| Package Type | 28-Lead PLCC |
| Input HIGH Current | 200 pA |
The device contains nine non-inverting buffer gates.
The maximum propagation delay is 500ps.
The extended VEE range is from -4.2V to -5.46V.
