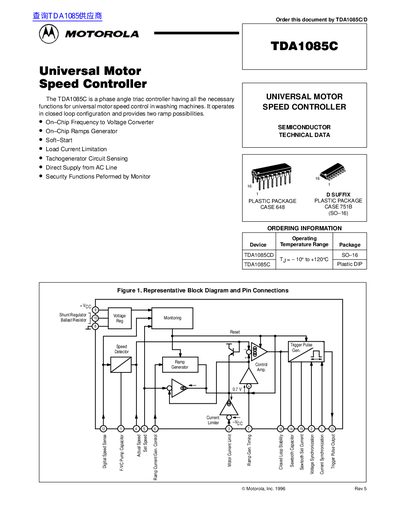

The TDA1085C is a phase angle triac controller with all the necessary functions for universal motor speed control in washing machines. It operates in closed loop configuration and provides two ramp possibilities.
The TDA1085C is a semiconductor device functioning as a phase angle triac controller specifically designed for universal motor speed control applications, such as washing machines. It operates in a closed-loop configuration and provides two ramp possibilities to manage acceleration efficiently.
Key features include an on-chip frequency-to-voltage converter, an on-chip ramp generator, soft-start capability, load current limitation, and tachogenerator circuit sensing. The device also incorporates security functions performed by a monitor to protect the system against AC line stoppage or variations, overcurrent in the motor, and tachogenerator failure.
| Operating Device Temperature Range | -10° to +120°C |
|---|---|
| Maximum Power Dissipation | 1.0 W |
| Thermal Resistance, Junction-to-Air | 65 °C/W |
| Internally Regulated Voltage (Typical) | 15.3 V |
| Current Consumption (Typical) | 6.0 mA |
| Amplifier Transconductance (Typical) | 340 µA/V |
Yes, it provides soft-start functionality along with load current limitation.
The device operates within a junction temperature range of -10°C to +120°C.
The maximum power dissipation is rated at 1.0 W.
