The MC10E/100E101 is a quad 4-input OR/NOR gate.

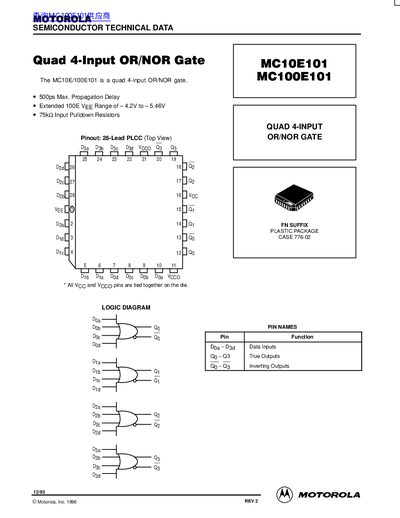

This document is a technical datasheet for the Motorola MC10E101 and MC100E101 integrated circuits. These devices are described as quad 4-input OR/NOR gates featuring a maximum propagation delay of 500ps and an extended VEE range from -4.2V to -5.46V.
| Propagation Delay (Max) | 500ps |
|---|---|
| VEE Range | -4.2V to -5.46V |
| Input Pulldown Resistors | 7Y5kco |
| Package Type | 28-Lead PLCC |
The maximum propagation delay to output is 500 ps.
The extended VEE range operates from -4.2V to -5.46V.
