The MC10E/100E107 is a quint 2-input XOR/XNOR gate. The function output F is the OR of all five XOR outputs, while F is the NOR. If only the F outputs are to be used, the Q outputs need not be terminated.

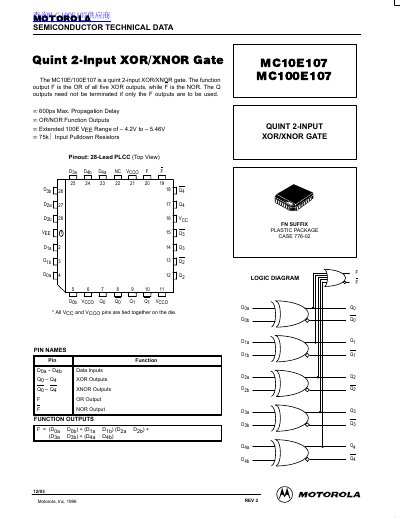

This document provides technical data for the MC10E107 and MC100E107, which are quint 2-input XOR/XNOR gates. The device features five independent XOR outputs (Q) and XNOR outputs (G), with a combined OR/NOR function output available at pins F. It is housed in a 28-lead PLCC package.
| Propagation Delay (Max) | 600ps |
|---|---|
| Supply Voltage Range (100E) | -4.2V to -5.46V |
| Package Type | 28-Lead PLCC |
The maximum propagation delay is 600 ps.
The extended VEE range is from -4.2V to -5.46V.
The device uses a 28-Lead PLCC plastic package.
