The MC10E/100E104 is a quint 2-input AND/NAND gate from Motorola that has a maximum propagation delay of 600ps and can output OR and NOR logic levels.

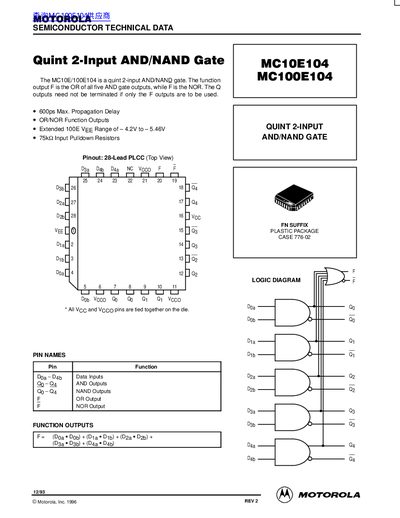

This document is a technical datasheet for the Motorola MC10E104 and MC100E104, which are Quint 2-Input AND/NAND gate integrated circuits. The device features five AND gate outputs and five NAND gate outputs, along with OR and NOR function outputs. It is available in a 28-lead PLCC plastic package (FN Suffix, Case 776-02).
| Propagation Delay (tPLH) | 600 ps max |
|---|---|
| Power Supply Current (IEE) | 38 mA typ (DC 25°C) |
| Package Type | 28-Lead PLCC |
| Operating Temperature | DC 25°C to 85°C |
| Package Case Number | 776-02 |
The F output represents the OR function of all five AND gate outputs.
The F output represents the NOR function of all five NAND gate outputs.
