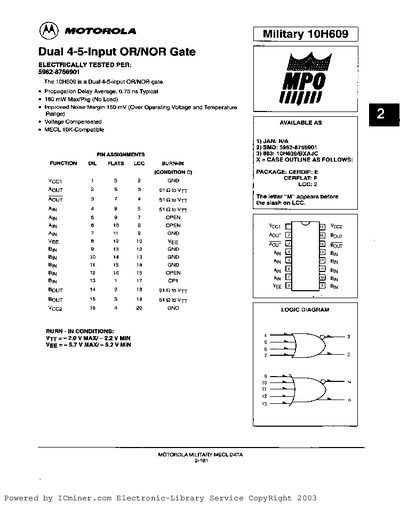

This document is a datasheet for the Motorola 10H609, a Dual 4-5-Input OR/NOR Gate integrated circuit designed for military applications. It specifies that the device is electrically tested per standard 59652-8756901 and is available as MECL 10K-Compatible.
| Propagation Delay Average | 0.75 ns Typical |
|---|---|
| Max Power Dissipation | 180 mW |
| Noise Margin | 150 mV |
The SMD version is available as 5962-8756901.
The typical propagation delay is 0.75 ns.
The maximum power dissipation is 180 mW.
