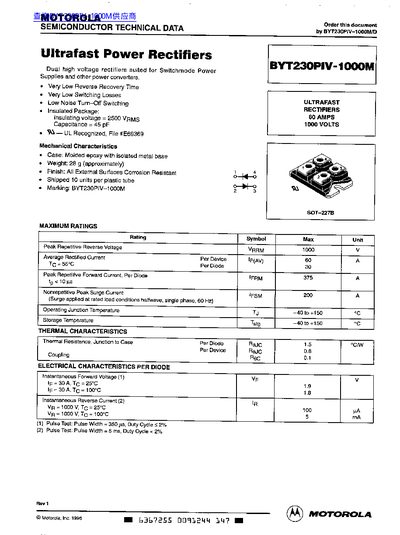

This document provides technical data for the Motorola BYT230PIV-1000M, a dual high voltage ultrafast power rectifier designed for switchmode power supplies and other power converters. The device features very low reverse recovery time and switching losses, housed in an insulated SOT-227B package with a 2500 Vrms insulating voltage.
The datasheet details maximum ratings including a peak repetitive reverse voltage of 1000V and an average rectified current per device of 60A. It also covers thermal characteristics, electrical specifications such as forward voltage drop, recovery characteristics under various test conditions, and package dimensions.
| Peak Repetitive Reverse Voltage | 1000 V |
|---|---|
| Average Rectified Current Per Device | 60 A |
| Operating Junction Temperature | -40 to +150 °C |
| Insulating Voltage | 2500 Vrms |
| Package Type | SOT-227B |
The device uses an SOT-227B insulated package.
Yes, it is AS/UL Recognized with File #E69369.
