The ASI OSC-0.7L is a NPN silicon RF power transistor with a maximum power dissipation of 7.0 W and a maximum collector-emitter voltage of 40 V. It features an Omnigold™ metalization system and is available in a TO-46 package.

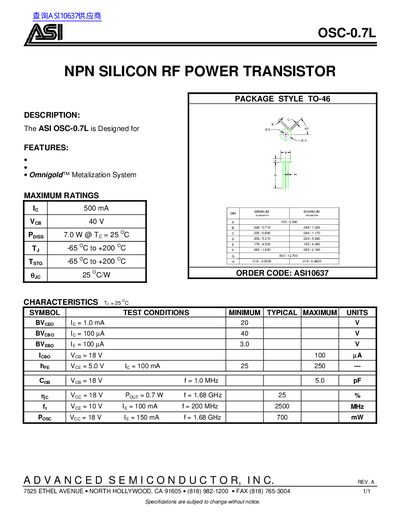

The document describes the ASI OSC-0.7L, an NPN silicon RF power transistor featuring the Omnigold™ Metalization System and available in a TO-46 package style.
Key electrical characteristics include a maximum collector current of 500 mA, a breakdown voltage (Vceo) of 40 V, and a maximum power dissipation of 7.0 W at a case temperature of 25 °C.
| Package Style | TO-46 |
|---|---|
| Collector Current (Ic) | 500 mA |
| Collector-Emitter Voltage (Vceo) | 40 V |
| Power Dissipation (Poiss) | 7.0 W @ Tc = 25 °C |
| Operating Temperature Range (Tt) | -65 °C to +200 °C |
The maximum continuous collector current rating is 500 mA.
The maximum power dissipation is 7.0 W when the case temperature is 25 °C.
The minimum DC current gain is 25 when the collector-emitter voltage is 18 V.
