GBPC6005 THRU GBPC610 are glass passivated single phase bridge rectifiers with reverse voltage of 50 to 1000 volts and forward current of 6.0 amperes

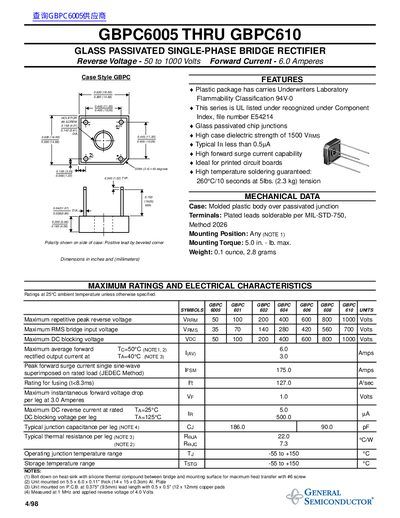

This document provides technical specifications for the GBPC6005 through GBPC610 series of glass passivated single-phase bridge rectifiers. The devices feature plastic packages with UL Flammability Classification 94V-0 and are designed for printed circuit board mounting.
Key electrical characteristics include a maximum repetitive peak reverse voltage ranging from 50 to 1000 Volts and a maximum average forward rectified output current of 6.0 Amperes at Tc=50°C. The datasheet details derating curves, surge current capabilities, junction capacitance, and thermal resistance data.
| Product Type | Glass Passivated Single-Phase Bridge Rectifier |
|---|---|
| Reverse Voltage Range | 50 to 1000 Volts |
| Forward Current | 6.0 Amperes |
| Maximum Instantaneous Forward Voltage Drop (VF) | 1.0 Volts |
The plastic package carries Underwriters Laboratory Flammability Classification 94V-0.
The maximum mounting torque is 5.0 in.-lb.
