LM1100 Series are full size HCMOS / TTL compatible oscillators featuring HCMOS / TTL output, 5.0V supply voltage, 14 pin DIP package and Gull wing / J-Lead option.

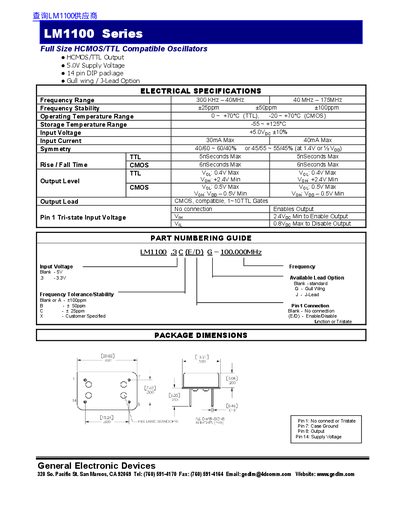

This document provides technical specifications for the LM1100 Series Full Size HCMOS/TTL Compatible Oscillators manufactured by General Electronic Devices. The oscillators operate with a 5.0V supply voltage and are available in 14 pin DIP packages with Gull wing or J-Lead options.
| Frequency Range | 300 KHz — 40MHz, 40 MHz — 175MHz |
|---|---|
| Frequency Stability | +25ppm, +50ppm, +100ppm |
| Operating Temperature Range | 0~ +70°C (TTL), -20 ~+70°C (CMOS) |
| Storage Temperature Range | -55 ~ +125°C |
| Input Voltage | +5.0Vpc +10% |
| Input Current | 30mA Max, 40mA Max |
| Output Load | CMOS, compatible, 1~10TTL Gates |
| Package Type | 14 pin DIP package |
The frequency range is 300 KHz to 40MHz and 40 MHz to 175MHz.
The oscillators require a 5.0V supply voltage.
The oscillators are available with Gull wing or J-Lead options.
