This data table lists the maximum electrical characteristics of SMZG3789A,B,SMZJ3789A,B,WA,B type diodes.

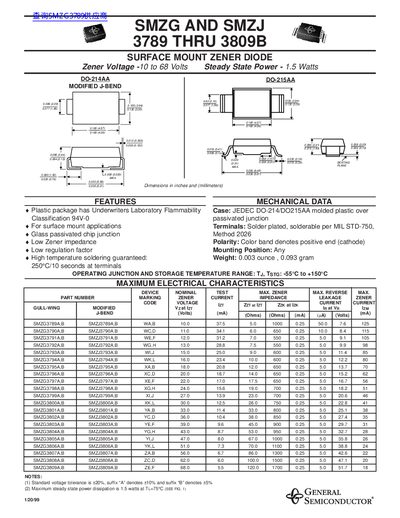

This document is a technical datasheet for the SMZG and SMZJ series of surface mount zener diodes manufactured by General Semiconductor. The devices are available in DO-214AA and DO-215AA modified J-bend plastic packages with glass passivated chip junctions.
The datasheet provides maximum electrical characteristics, including steady state power dissipation of 1.5 Watts and Zener voltages ranging from -10 to 68 Volts. It details operating temperature ranges, package dimensions, and includes typical characteristic curves for power dissipation, impedance, and temperature coefficients.
| Package Type | DO-214AA DO-215AA Modified J-Bend |
|---|---|
| Steady State Power Dissipation | 1.5 Watts |
| Zener Voltage Range | -10 to 68 Volts |
| Operating Junction Temperature | -55°C to +150°C |
| Flammability Classification | UL 94V-0 |
The standard voltage tolerance is +20%.
Suffix 'A' denotes a +10% tolerance and suffix 'B' denotes a +5% tolerance.
High temperature soldering is guaranteed at 250°C for 10 seconds at terminals.
