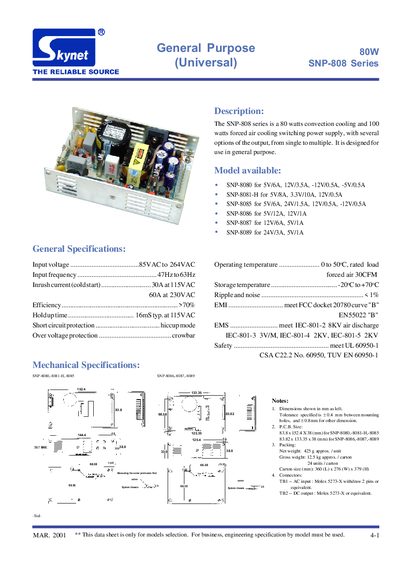

The SNP-808 series is an 80 watts convection cooling and 100 watts forced air cooling switching power supply, with several options of the output, from single to multiple. It is designed for use in general purpose.
The SNP-808 series is a family of 80 W switching power supplies offering both convection‑cooled and forced‑air‑cooled options. The series includes several models (SNP‑8080, SNP‑8081‑H, SNP‑8085, SNP‑8086, SNP‑8087, SNP‑8089) with selectable output voltages and currents for general‑purpose applications.
The datasheet lists electrical input ranges, efficiency, protection features, mechanical dimensions, connector types, and detailed output specifications for each model, along with performance graphs and regulatory compliance information.
| Input frequency range | 47 Hz to 63 Hz |
|---|---|
| SNP‑8080 +5 V output | 1 A min, 6 A rated, 10 A max, 4.95‑5.05 V, 50 mV ripple, +1 % line reg, +1 % load reg |
