The BZX384-C2V4 through BZX384-C75 Zener diodes are silicon planar power Zener diodes.

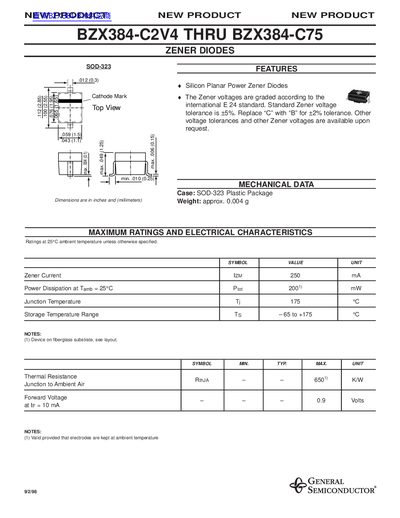

This document is a technical datasheet for the BZX384 series of Silicon Planar Power Zener Diodes manufactured by General Semiconductor. The diodes are available in various voltage grades ranging from 2.2V to 79V, adhering to the international E 24 standard with standard tolerances of ±5% (replaceable with 'B' for ±2%).
The datasheet provides detailed maximum ratings and electrical characteristics at an ambient temperature of 25°C. Key specifications include a maximum Zener current of 250 mA, a power dissipation of 200 mW, and a junction temperature limit of 175 °C. The devices are housed in SOD-323 plastic packages with approximate weights of 0.004 g.
| Package Type | SOD-323 Plastic Package |
|---|---|
| Weight | approx. 0.004 g |
| Maximum Zener Current (IZM) | 250 mA |
| Power Dissipation at Tamb=25°C | 200 mW |
| Junction Temperature (Tj) | 175 °C |
| Storage Temperature Range (Ts) | -65 to +175 °C |
| Thermal Resistance RthJA | 650 K/W |
The standard Zener voltage tolerance is ±5%.
Replace the letter 'C' with 'B' in the part number to get ±2% tolerance.
The maximum junction temperature (Tj) is 175 °C.
