UGB8AT thru UGB8DT is an ultrafast efficient plastic rectifier with a reverse voltage of 50 to 200 volts and a forward current of 8.0 amperes. It is ideally suited for use in very high frequency switching power supplies, inverters, and as a free-wheeling diode. The rectifier has ultrafast reverse recovery time for high efficiency, soft recovery characteristics, excellent high temperature switching, and a glass passivated chip junction.

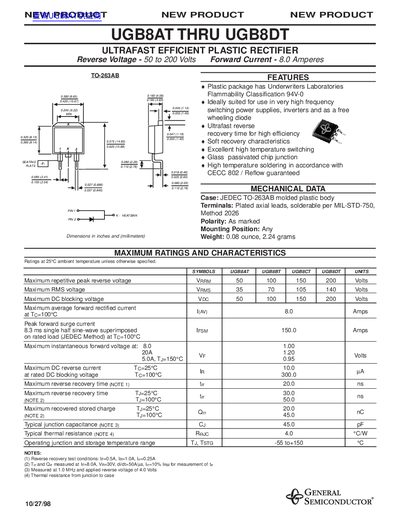

This document is a datasheet for the General Semiconductor UGB8AT through UGB8DT series of ultrafast efficient plastic rectifiers. These devices are designed for use in very high frequency switching power supplies, inverters, and as free-wheeling diodes. The components feature a JEDEC TO-263AB molded plastic body with Underwriters Laboratories Flammability Classification 94V-0.
| Reverse Voltage (VRRM) | 50 to 200 Volts |
|---|---|
| Forward Current (Iav) | 8.0 Amperes |
| Package Type | TO-263AB |
| Flammability Classification | 94V-0 |
| Operating Temperature Range | -55 to +150 °C |
| Maximum Reverse Recovery Time (Trr) | 20.0 ns |
They are ideally suited for use in very high frequency switching power supplies, inverters and as a free wheeling diode.
The plastic package has Underwriters Laboratories Flammability Classification 94V-0.
The maximum average forward rectified current at Tc=100°C is 8.0 Amps.
