The data table mainly introduces the characteristics of the product 2N7002, including maximum ratings, electrical characteristics, mechanical characteristics, etc.

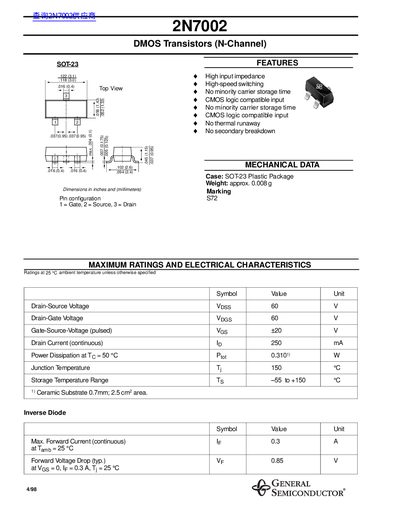

The document details the specifications of the 2N7002 N-Channel DMOS Transistor. Key features include high input impedance, high-speed switching, CMOS logic compatibility, and a SOT-23 plastic package.
Maximum ratings specify a Drain-Source Voltage of 60 V, a continuous Drain Current of 250 mA, and a Power Dissipation of 0.31 W at 50 °C. Electrical characteristics cover parameters such as Gate Threshold Voltage (Typ. 2.5 V), On Resistance (Max. 7.5 Ω), and Switching Times.
| Junction Temperature (Tj) | 150 °C |
|---|---|
| Package Type | SOT-23 Plastic Package |
Yes, the device features a CMOS logic compatible input.
The maximum rated junction temperature (Tj) is 150 °C.
