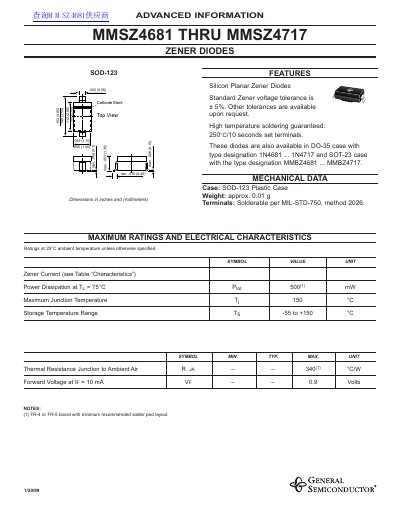

MMSZ4681-MMSZ4717 SOD-123 Silicon Planar Diodes
This document is a datasheet for Silicon Planar Zener Diodes manufactured by General Semiconductor. The series covers part numbers from MMSZ4681 to MMSZ4717, available in SOD-123 plastic cases, with alternative designations for DO-35 and SOT-23 packages. Standard Zener voltage tolerance is +5%, though other tolerances are available upon request.
| Case Type | SOD-123 Plastic Case |
|---|---|
| Weight | approx. 0.01 g |
| Maximum Junction Temperature | 150 °C |
| Storage Temperature Range | -55 to +150 °C |
| Power Dissipation | 500 mW |
| Thermal Resistance Junction to Ambient | 340 °C/W |
| Forward Voltage | 0.9 Volts |
| Zener Voltage Tolerance | + 5% |
The standard Zener voltage tolerance is +5%, although other tolerances are available upon request.
Yes, they are available in DO-35 case (type designation 1N4681 ... 1N4717) and SOT-23 case (type designation MMBZ4681 ... MMBZ4717).
The maximum junction temperature is 150 °C.
