General Purpose Transistors NPN Silicon BC817-16LT1 BC817-25LT1 BC817-40LT1 handbook

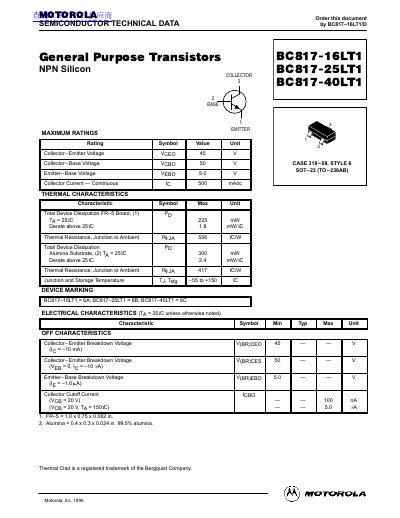

This document is the data sheet of BC817-16LT1. It mainly introduces the maximum rating, thermal characteristics, electrical characteristics and other information of the product.

Brand: General
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 91 KB
Published: 10 July, 2012
Updated: 01 October, 2023
MD5 checksum: A0954DEFC020558878BA68EA31A9EC55
PDF: General Purpose Transistors NPN Silicon BC817-16LT1 BC817-25LT1 BC817-40LT1 handbook PDF

About this manual

This document provides technical specifications and maximum ratings for the BC817 series of NPN silicon general-purpose transistors. It covers three specific models: BC817-16LT1, BC817-25LT1, and BC817-40LT1.

What's inside

Maximum Ratings
Thermal Characteristics
Electrical Characteristics
Device Marking
SOT-23 Package Information
Package Dimensions

Specifications

Collector-Emitter Voltage (VCEO)	45 V
Collector Current — Continuous (Io)	500 mA
Junction and Storage Temperature (Tj: Tstg)	-55 to +150 °C
Current-Gain Bandwidth Product (fT)	200 MHz

Frequently asked questions

What are the different models in this series?

The document covers BC817-16LT1, BC817-25LT1, and BC817-40LT1.

What is the package type?

The transistors are available in SOT-23 (TO—236AB) packages.

What is the maximum power dissipation on FR-5 board?

The total device dissipation is 225 mW at Ta = 25°C.
