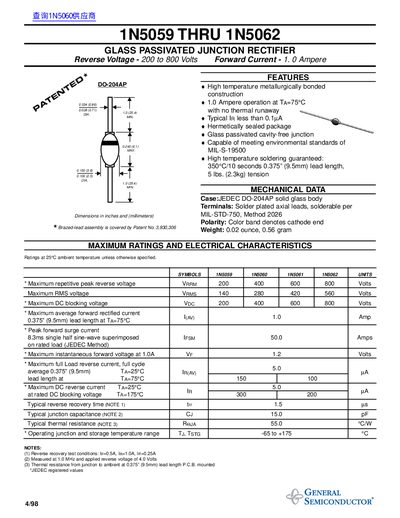

This document is a datasheet for the General 1N5059 through 1N5062 series of glass passivated junction rectifiers. These components feature high-temperature metallurgically bonded construction and are hermetically sealed in a DO-204AP solid glass body package. They are designed for 1.0 Ampere operation at 75°C ambient temperature with no thermal runaway.
| Forward Current | 1.0 Ampere |
|---|---|
| Reverse Voltage | 200 to 800 Volts |
| Package Type | DO-204AP |
| Operating Temperature Range | -65 to +175 °C |
| Maximum Peak Reverse Reverse Voltage | 800 Volts |
| Maximum Average Forward Rectified Current | 1.0 Am |
The typical reverse recovery time is 1.5 ps.
The typical junction capacitance is 15.0 pF.
The maximum thermal resistance from junction to ambient is 55.0 °C/W.
