1N5059 THRU 1N5062 GLASS PASSIVATED JUNCTION RECTIFIER is a rectifier diode with a maximum reverse voltage of 200 to 800 volts and a maximum forward current of 1. 0 amperes.

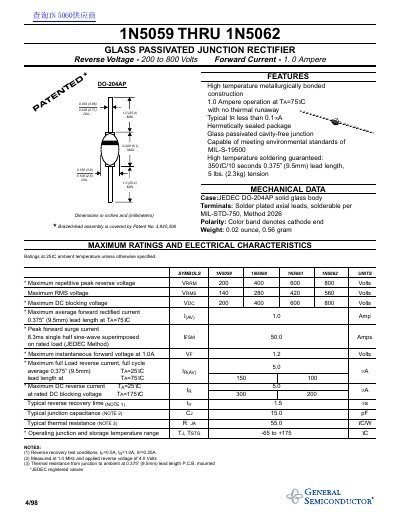

This document provides technical specifications for the General 1N5059 through 1N5062 series of glass passivated junction rectifiers. These components are designed for high-temperature operation and feature a hermetically sealed package with a DO-204AP solid glass body. Key electrical characteristics include a maximum average forward rectified current of 1.0 Ampere and reverse voltages ranging from 200 to 800 Volts depending on the specific model.
| Forward Current | 1.0 Ampere |
|---|---|
| Reverse Voltage Range | 200 to 800 Volts |
| Package Type | DO-204AP |
| Operating Temperature Range | -65 to +175 °C |
| Maximum Peak Forward Surge Current | 50.0 Amps |
| Maximum Instantaneous Forward Voltage | 1.2 Volts |
| Typical Reverse Recovery Time | 1.5 ps |
The maximum average forward rectified current is 1.0 Ampere at Ta=75°C.
The package is a JEDEC DO-204AP solid glass body.
Yes, they are capable of meeting the environmental standards of MIL-S-19500.
