1N4681-1N4717 series diodes are standard silicon planar zener diodes with rated voltages of 1.8-2.7V, maximum reverse current of 50uA, maximum zener current of 1mA, maximum power dissipation of 500mW and maximum operating temperature of 175°C.

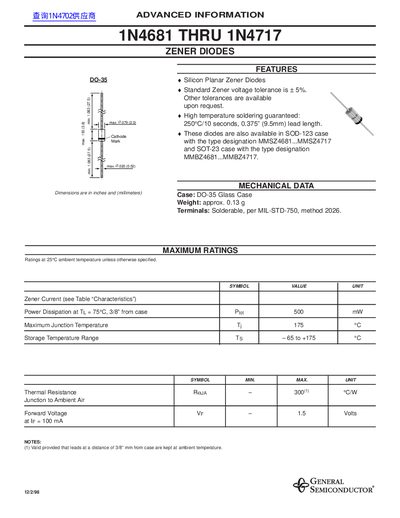

This datasheet provides advanced information for General Semiconductor's Silicon Planar Zener Diodes, covering the part number range from 1N4681 through 1N4717. The document details standard features including a +5% voltage tolerance and availability in DO-35, SOD-123, and SOT-23 cases.
| Zener Voltage Tolerance | + 5% |
|---|---|
| Maximum Junction Temperature | 175 °C |
| Storage Temperature Range | - 65 to +175 °C |
| Thermal Resistance | 300 °C/W |
| Forward Voltage | 1.5 Volts |
The standard Zener voltage tolerance is + 5%.
The maximum junction temperature is 175 °C.
The Zener voltage is tested at a current of 50uA.
