The 163CMQ isolated center tap Schottky rectifier module series has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175°C junction temperature. Typical applications are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection.

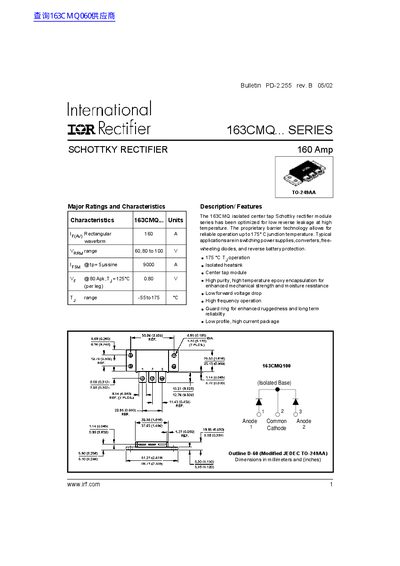

This document is a datasheet for the International Rectifier 163CMQ... Series of isolated center tap Schottky rectifier modules. The proprietary barrier technology allows for reliable operation up to 175°C junction temperature.
Typical applications include switching power supplies, converters, free-wheeling diodes, and reverse battery protection. Key features include low forward voltage drop, high frequency operation, and a TO-249AA package style.
| Maximum Average Forward Current (IF(AV)) | 160 A |
|---|---|
| Maximum Junction Temperature (TJ) | -55 to 175 °C |
| Package Style | TO-249AA |
| Maximum Thermal Resistance Junction to Case (Per Leg) | 1.0 °C/W |
| Maximum Forward Voltage Drop @ 80A (Per Leg) | 0.98 V |
The modules are optimized for reliable operation up to a maximum junction temperature of 175°C.
They are designed for use in switching power supplies, converters, free-wheeling diodes, and reverse battery protection.
