The 163CNQ isolated center tap Schottky rectifier module series has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175° C junction temperature. Typical applications are in switching power supplies, converters, free- wheeling diodes, and reverse battery protection.

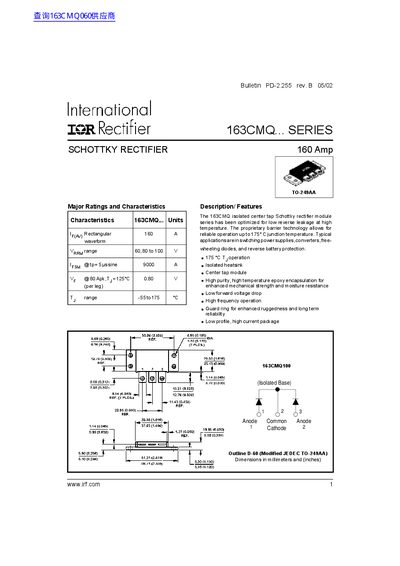

The International Rectifier 163CMQ Series consists of isolated center tap Schottky rectifier modules optimized for low reverse leakage at high temperatures. These devices feature proprietary barrier technology allowing operation up to 175°C junction temperature and are designed for applications such as switching power supplies, converters, freewheeling diodes, and reverse battery protection.
| Max. Average Forward Current | 160 A |
|---|---|
| Max. Junction Temperature Range | -55 to 175 °C |
| Max. Forward Voltage Drop | 0.98 V |
| Max. Reverse Leakage Current | 1.5 mA |
| Max. Junction Capacitance | 1400 pF |
| Max. Thermal Resistance Junction to Case | 1.0 °C/W |
| Case Style | TO-249AA |
The maximum junction temperature range is -55 to 175 °C.
The maximum forward voltage drop is 0.80 V at 80A and 125°C.
