AOL1434 is a N-Channel Enhancement Mode Field Effect Transistor with a maximum voltage of 25V, a maximum current of 50A, and a RDS(ON) of less than 6.3 mΩ (VGS = 10V) and less than 10 mΩ (VGS = 4.5V). This device is suitable for use in PWM, load switching and general purpose applications.

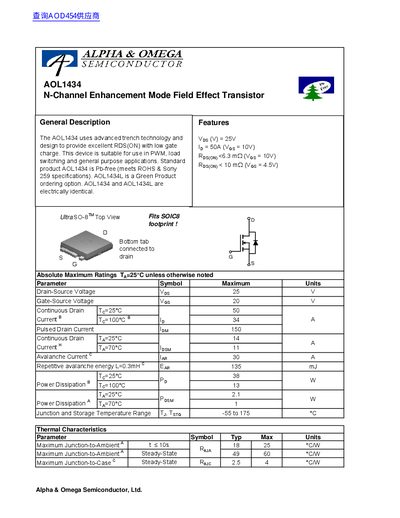

This document is a datasheet for the AOL1434, an N-Channel Enhancement Mode Field Effect Transistor designed by Alpha & Omega Semiconductor. The device utilizes advanced trench technology to provide excellent RDS(ON) with low gate charge, making it suitable for PWM, load switching, and general-purpose applications. It is available in a standard Pb-free version and a Green Product option (AOL1434L), which are electrically identical.
| Drain-Source Voltage | 25 V |
|---|---|
| Continuous Drain Current | 50 A |
| Power Dissipation | 38 W |
| Junction and Storage Temperature Range | -55 to 175 °C |
| On state drain current | 150 A |
| Static Drain-Source On-Resistance | 6.3 mQ |
| Total Gate Charge (10V) | 34 nC |
