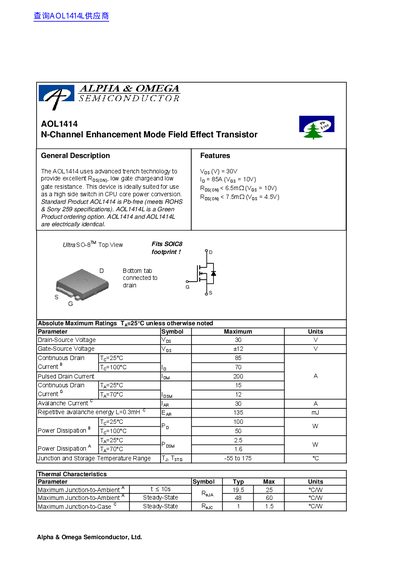

The AOL1414 is a N-Channel Enhancement Mode Field Effect Transistor produced by Alpha&Omega Semiconductor, Ltd. It features RDS(ON) < 6.5mΩ (VGS = 10V) and RDS(ON) < 7.5mΩ (VGS = 4.5V), making it ideal for use as a high side switch in CPU core power conversion.
The AOL1414 is an N-Channel Enhancement Mode Field Effect Transistor designed using advanced trench technology. It features low gate charge and low gate resistance, making it ideally suited for use as a high side switch in CPU core power conversion applications.
This device is available in the UltraSO-8 package with a bottom tab connected to the drain. The product meets ROHS and Sony 259 specifications (Pb-free), with an optional Green Product ordering option (AOL1414L) that is electrically identical.
| Drain-Source Voltage (Vos) | 30 V |
|---|---|
| Continuous Drain Current (Tc=25°C) | 85 A |
| Power Dissipation (Tj=25°C) | 100 W |
| Junction and Storage Temperature Range | -55 to 175 °C |
The maximum junction-to-ambient thermal resistance is 19.5 °C/W in a still air environment.
