The document describes the features and characteristics of the AOL1418 N-Channel Enhancement Mode Field Effect Transistor, including operating voltage, drain current, on-state resistance, etc. It is suitable for use as a high side switch in CPU core power conversion.

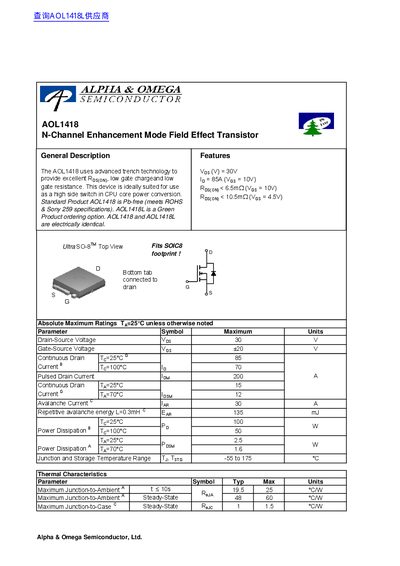

The AOL1418 is an N-Channel Enhancement Mode Field Effect Transistor utilizing advanced trench technology. It is designed to provide low gate charge and low gate resistance, making it ideally suited for use as a high side switch in CPU core power conversion. The device is available in a standard Pb-free version and a Green Product ordering option (AOL1418L), which are electrically identical.
| Drain-Source Voltage | 30 V |
|---|---|
| Continuous Drain Current | 85 A |
| Static Drain-Source On-Resistance | < 6.5 mΩ |
| Package Type | UltraSO-8 |
| Junction and Storage Temperature Range | -55 to 175 °C |
The maximum continuous drain current is 85 A when the temperature is 25°C.
The maximum junction-to-ambient thermal resistance is 60 °C/W in steady-state conditions.
The maximum junction-to-case thermal resistance is 1.5 °C/W in steady-state conditions.
