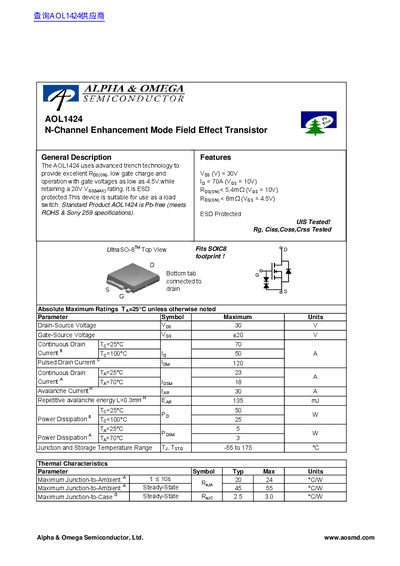

AOL1424 is an N-Channel Enhancement Mode Field Effect Transistor produced by Alpha & Omega Semiconductor, Ltd. Its features are RDS(ON)<5.4mΩ (VGS = 10V), RDS(ON)<8mΩ (VGS = 4.5V), ESD protected, suitable for use as a load switch.
The AOL1424 is an N-channel enhancement mode field effect transistor utilizing advanced trench technology. It provides excellent performance with low gate charge and operates effectively at gate voltages as low as 4.5V while retaining a 30V drain-source voltage rating. The device includes ESD protection and is suitable for use as a load switch.
| Continuous Drain Current (Ta=25°C) | 70 A |
|---|---|
| Junction and Storage Temperature Range | -55 to 175 °C |
| Gate Threshold Voltage (Vth) | 1.4 to 2.5 V |
| Static Drain-Source On-Resistance (RDS(on)) | 6.3 to 7.6 mΩ |
| Total Gate Charge (Qg) | 48 nC |
The device operates with gate voltages as low as 4.5V.
Yes, it is Pb-free and meets ROHS specifications.
It fits an SOIC8 footprint.
