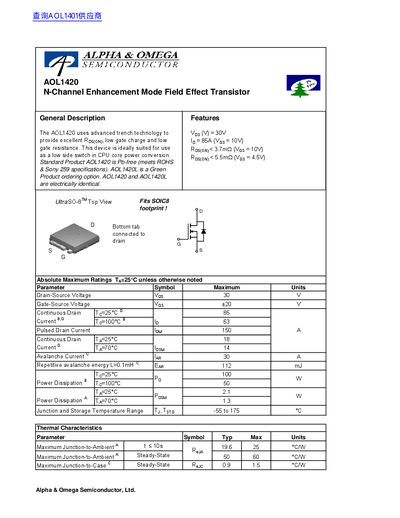

AOL1420 is a N-channel enhancement mode field effect transistor produced by Alpha & Omega Semiconductor. Its features are low RDS(ON), low gate charge and low gate resistance. This device is ideally suited for use as a low side switch in CPU core power conversion.
The AOL1420 is an N-Channel Enhancement Mode Field Effect Transistor utilizing advanced trench technology. It features low gate charge and low gate resistance, making it ideally suited for use as a low side switch in CPU core power conversion applications.
This document provides comprehensive electrical and thermal characteristics, including absolute maximum ratings, static parameters such as breakdown voltage and on-state resistance, dynamic switching parameters like total gate charge, and typical performance curves for various operating conditions.
| Drain-Source Voltage (VDS) | 30 V |
|---|---|
| Continuous Drain Current (Tj=25°C) | 85 A |
| Power Dissipation (Tc=100°C) | 1.3 W |
| Junction and Storage Temperature Range | -55 to 175 °C |
| On state drain current (Typ) | 85 A |
The maximum power dissipation is limited to 1.3 W when the ambient temperature reaches 70°C.
