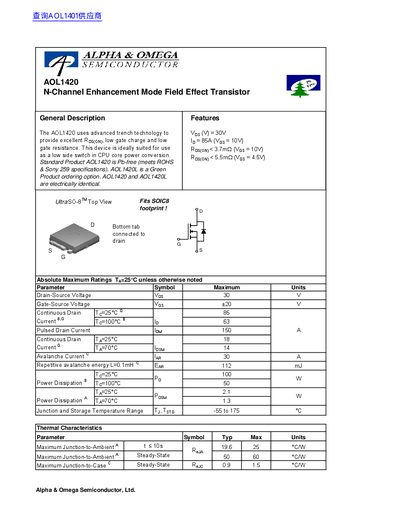

The AOL1420 is an N-channel enhancement mode field effect transistor produced by Alpha & Omega Semiconductor, Ltd. Its features are RDS(ON) < 3.7mΩ (VGS = 10V) and RDS(ON) < 5.5mΩ (VGS = 4.5V).
The AOL1420 is an N-Channel Enhancement Mode Field Effect Transistor utilizing advanced trench technology to provide low gate charge and low gate resistance. It is designed for use as a low side switch in CPU core power conversion applications and is available in a standard Pb-free version or a Green Product option (AOL1420L). The device is packaged in an UltraSO-8™ package.
| Drain-Source Voltage | 30 V |
|---|---|
| Continuous Drain Current | 85 A |
| Power Dissipation | 50 W |
| Junction Temperature Range | -55 to 175 °C |
| Package Type | UltraSO-8™ |
The device has a maximum junction-to-ambient thermal resistance of 60 °C/W in steady-state operation.
