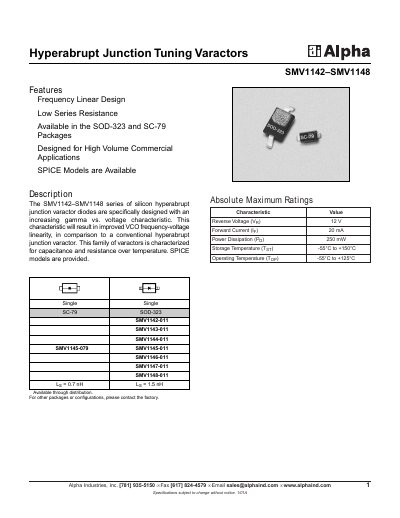

The SMV1142–SMV1148 series of silicon hyperabrupt junction varactor diodes are specifically designed with an increasing gamma vs. voltage characteristic. This characteristic will result in improved VCO frequency-voltage linearity, in comparison to a conventional hyperabrupt junction varactor. This family of varactors is characterized for capacitance and resistance over temperature. SPICE models are provided.
The document describes the SMV1142-SMV1148 series of silicon hyperabrupt junction varactor diodes. These components are specifically designed with an increasing gamma vs. voltage characteristic to improve VCO frequency-voltage linearity compared to conventional hyperabrupt junction varactors.
Available in SOD-323 and SC-79 packages, the datasheet provides absolute maximum ratings, electrical specifications at 25°C (including capacitance ratios and Q factors), typical performance data graphs, detailed capacitance values across various reverse voltages, SPICE model parameters for circuit simulation, and mechanical dimensions.
| Reverse Voltage (Vr) | 12 V |
|---|---|
| Forward Current (IF) | 20 mA |
| Power Dissipation (Pp) | 250 mW |
| Operating Temperature Range | -55°C to +125°C |
| Storage Temperature Range | -55°C to +150°C |
They are designed with an increasing gamma vs. voltage characteristic for improved VCO frequency-voltage linearity.
The components are available in SOD-323 and SC-79 packages.
Yes, SPICE models are available for the SMV1142-SMV1148 series.
