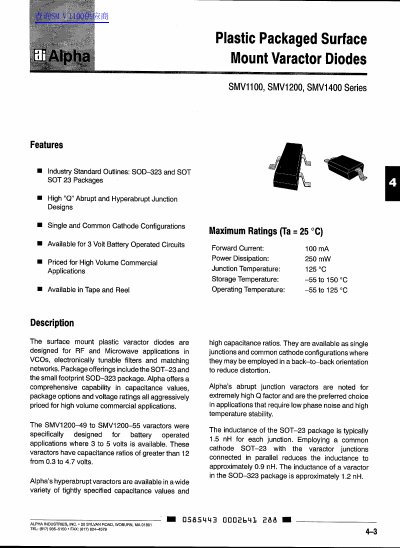

This document is a technical datasheet for Alpha Industries' Plastic Packaged Surface Mount Varactor Diodes. It covers three main product series: the SMV1100, SMV1200, and SMV1400 families.
The datasheet provides detailed electrical characteristics, maximum ratings, and typical performance data for various part numbers within these series. Applications include RF and microwave circuits such as voltage-controlled oscillators (VCOs), electronically tunable filters, and matching networks.
| Power Dissipation (Max) | 250 mW |
|---|---|
| Junction Temperature (Max) | 125 °C |
| Operating Temperature Range | -55 to 125 °C |
| Storage Temperature Range | -55 to 150 °C |
The maximum power dissipation is 250 mW.
