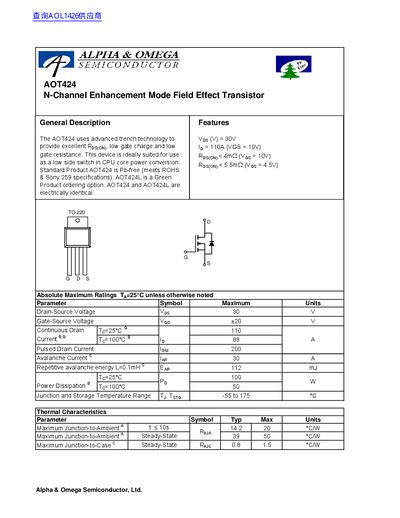

AOT424 is a N-Channel Enhancement Mode Field Effect Transistor product produced by Alpha & Omega Semiconductor, Ltd. Its features are RDS(ON) < 4mΩ (VGS = 10V) and RDS(ON) < 5.5mΩ (VGS = 4.5V).
The AOT424 is an N-Channel Enhancement Mode Field Effect Transistor designed using advanced trench technology. It is ideally suited for use as a low side switch in CPU core power conversion applications. The device is available in a standard Pb-free version meeting ROHS and Sony specifications, as well as a Green Product ordering option (AOT424L).
| Drain-Source Voltage | 30 V |
|---|---|
| Continuous Drain Current | 110 A |
| Junction Temperature Range | -55 to 175 °C |
| On-State Drain Current | 110 A |
| Gate Threshold Voltage | 1 to 3 V |
