The product is a SMV1247-001 plastic variable capacitor diode produced by Alpha Industries. The product has high Q, abrupt and hyperabrupt junction designs, single, common anode and common cathode configurations, and is available for 3 volt battery operated circuits. The price is suitable for large-scale commercial applications and can be provided in tape and reel, as well as chips.

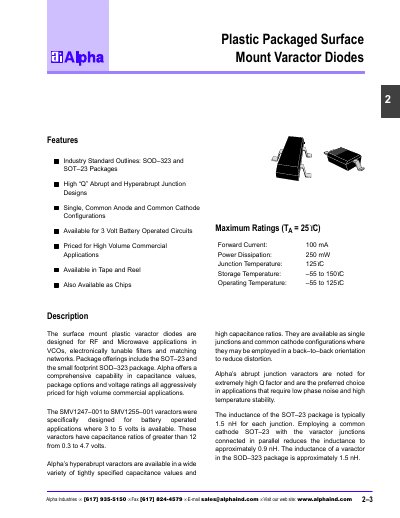

This datasheet details the characteristics of Alpha Industries' plastic packaged surface mount varactor diodes, designed for RF and microwave applications. The components are available in various configurations including single, common anode, and common cathode setups within SOD-323 and SOT-23 packages.
The document provides comprehensive electrical specifications for different voltage ratings (3V, 12V, 15V, 22V, and 30V) across multiple model numbers. It includes data on capacitance values, breakdown voltages, reverse currents, and Q factors at specific frequencies.
| Package Types | SOD-323 and SOT-23 |
|---|
The maximum forward current is 100 mA, the maximum power dissipation is 250 mW, and the maximum junction temperature is 125 °C.
The inductance of the SOT–23 package is typically 1.5 nH for each junction.
The minimum breakdown voltage for these varactors is 15V.
