AOL1400 is a N-channel enhancement mode field effect transistor produced by Alpha & Omega Semiconductor, Ltd. Its maximum drain-source voltage is 30V, maximum drain current is 85A, maximum gate-source voltage is 10V, maximum gate current is 200A, and switching speed is fast. It has good anti-shoot-through capability and is very suitable for use as a low side switch in CPU core power conversion.

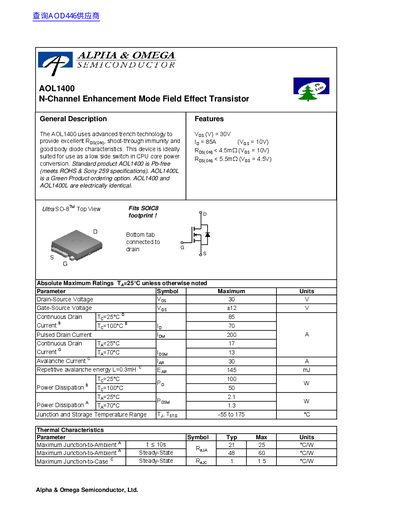

The AOL1400 is an N-Channel Enhancement Mode Field Effect Transistor utilizing advanced trench technology. It is designed to provide excellent shoot-through immunity and good body diode characteristics, making it ideally suited for use as a low side switch in CPU core power conversion applications. The device is available in a standard Pb-free version and a Green Product option (AOL1400L), which are electrically identical.
| Drain-Source Voltage | 30 V |
|---|---|
| Continuous Drain Current (Tc=25°C) | 85 A |
| Power Dissipation (Tc=25°C) | 100 W |
| Junction and Storage Temperature Range | -55 to 175 °C |
| Gate Threshold Voltage | 0.6 to 1.8 V |
| On state drain current | 100 A |
| Static Drain-Source On-Resistance (Typ) | 4.5 mΩ |
| Input Capacitance | 10500 pF |
Yes, the standard product AOL1400 is Pb-free and meets ROHS & Sony 259 specifications.
The maximum junction temperature is 175°C.
Yes, the AOL1400L is a Green Product ordering option.
