HUF75623P3 is a 22A, 100V, 0.064 Ohm N-channel UltraFET power MOSFET from Intersil Corporation. It features an ultra-low on-resistance and can be used in a variety of power electronic applications.

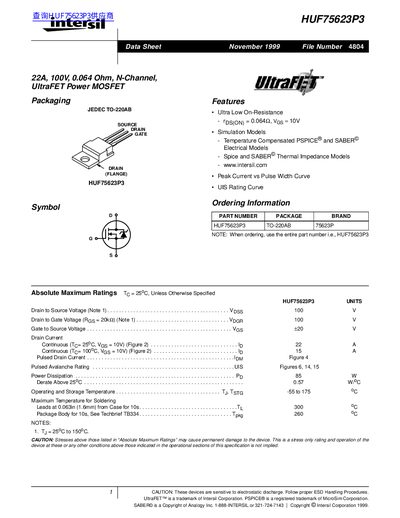

This document is a datasheet for the Intersil HUF75623P3, an N-Channel UltraFET Power MOSFET packaged in TO-220AB. The device features a continuous drain current of 22A at 25°C and a drain-to-source on-resistance of 0.064 Ohms. It is designed for high-power switching applications with a maximum drain-to-source voltage of 100V.
| Continuous Drain Current (25°C) | 22 A |
|---|---|
| Continuous Drain Current (100°C) | 15 A |
| Power Dissipation | 85 W |
| Operating Temperature Range | -55 to 175 °C |
| Drain to Source On Resistance | 0.064 Ohms |
| Thermal Resistance Junction to Case | 1.76 °C/W |
| Package Type | TO-220AB |
The maximum continuous drain current at 25°C is 22A.
The operating and storage temperature range is -55 to 175°C.
