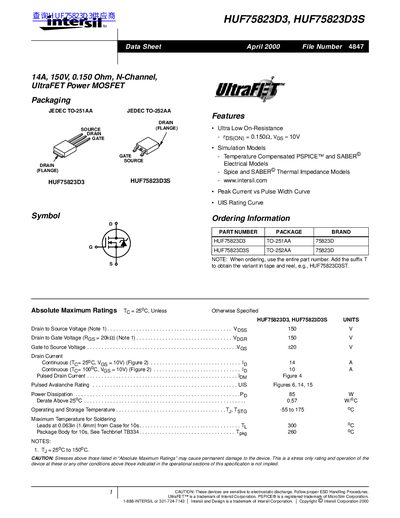

Intersil HUF75823D3/HUF75823D3S UltraFET Power MOSFET Datasheet

HUF75823D3, HUF75823D3S are Intersil's N-channel ultra-low on-resistance power MOSFETs with 0.150 ohm (VGS = 10V) and provide simulation models for design and use

Brand: Intersil
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 11
File format: PDF
File size: 187 KB
Published: 11 June, 2012
Updated: 30 September, 2023
MD5 checksum: 6123C0842ACE2DFF03B2FF2FD1B3227A
PDF: Intersil HUF75823D3/HUF75823D3S UltraFET Power MOSFET Datasheet PDF

About this manual

This document is a datasheet for the Intersil HUF75823D3 and HUF75823D3S N-Channel UltraFET Power MOSFETs. The devices are available in JEDEC TO-251AA and TO-252AA packages, respectively.

What's inside

Features
Ordering Information
Absolute Maximum Ratings
Electrical Specifications
Thermal Specifications
Switching Specifications
Gate Charge Specifications
Capacitance Specifications
Source to Drain Diode Specifications
Typical Performance Curves

Specifications

Drain to Source Voltage	150 V
On-Resistance RDS(ON)	0.150 Ohm

Frequently asked questions

What is the maximum continuous drain current at 25°C?

The maximum continuous drain current is 14 A when the temperature is 25°C.

What is the maximum power dissipation?

The maximum power dissipation is 85 W.
