HUF75829D3, HUF75829D3S 18A, 150V, 0.110 Ohm, N-Channel, UltraFET Power MOSFET is a power transistor produced by Intersil Corporation. It has the characteristics of ultra-low on-resistance, fast response and low conduction resistance. It is suitable for various power electronic applications.

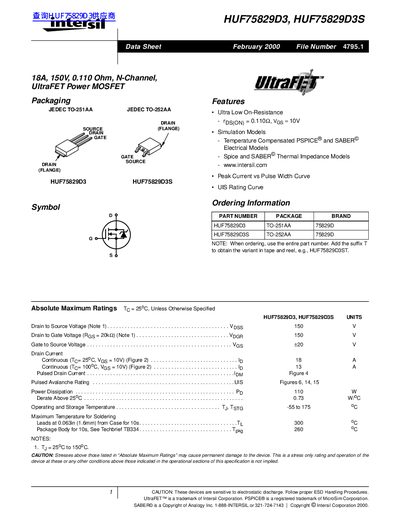

This datasheet describes the Intersil HUF75829D3 and HUF75829D3S, which are 18A, 150V, N-Channel UltraFET Power MOSFETs. The devices are available in JEDEC TO-251AA and TO-252AA packages and feature an ultra-low on-resistance of 0.110 Ohms at Vgs = 10V.
The document provides comprehensive electrical specifications, including off-state and on-state parameters, thermal characteristics, and switching specifications. It also includes typical performance curves, test circuits, and PSPICE electrical models for circuit simulation.
| Drain to Source Voltage | 150 V |
|---|---|
| On-Resistance | 0.110 Ohm |
| Package Types | TO-251AA, TO-252AA |
| Operating Temperature | -55 to 175 °C |
| Thermal Resistance (Junction to Case) | 1.36 °C/W |
