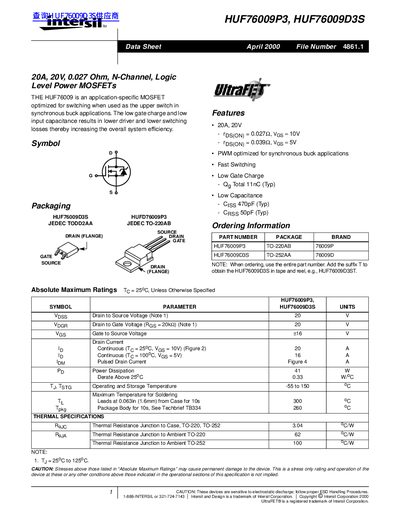

HUF76009P3, HUF76009D3S 20A, 20V, 0.027 Ohm, N-Channel, Logic Level Power MOSFETs is a low gate charge, low input capacitance, high switching speed MOSFET designed for use as the upper switch in synchronous buck applications.
The HUF76009 is an application-specific MOSFET designed to be used as the upper switch in synchronous buck applications. It features low gate charge and low input capacitance to reduce driver and switching losses, thereby increasing overall system efficiency. The device is available in TO-220AB (HUF76009P3) and TO-252AA (HUF76009D3S) packages.
| Drain to Source Voltage | 20 V |
|---|---|
| On Resistance (Vgs = 10V) | 0.027 Ohm |
| Total Gate Charge (Typ) | 11 nC |
| Input Capacitance (Typ) | 470 pF |
| Operating Temperature Range | -55 to 150 °C |
The HUF76009 is optimized for switching when used as the upper switch in synchronous buck applications.
The absolute maximum rating for the drain to source voltage is 20 V.
The typical drain to source on resistance increases from 0.027 Ohm at 10V to 0.039 Ohm at 5V.
