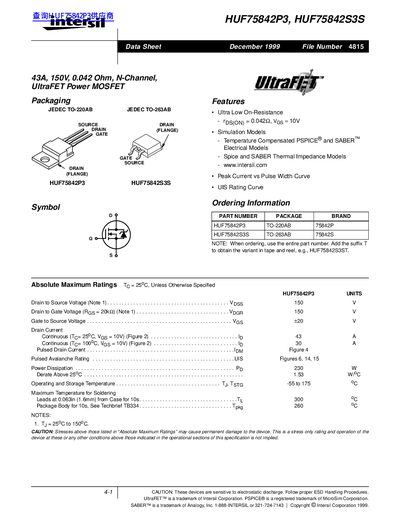

HUF75842P3, HUF75842S3S 43A, 150V, 0.042 Ohm, N-Channel, UltraFET Power MOSFET feature ultra low on-resistance (rDS(ON) = 0.042Ω, VGS = 10V), temperature compensated PSPICE® and SABER™ electrical models, Spice and SABER thermal impedance models, and are available for download.
The document details the features of the HUF75842P3 (TO-220AB package) and HUF75842S3S (TO-263AB package), which are N-Channel UltraFET Power MOSFETs with a 150V drain-to-source voltage rating and an on-resistance of 0.042 Ohms.
Key specifications include continuous drain currents up to 43A at 25°C, operating temperatures from -55°C to +175°C, and comprehensive electrical parameters such as gate charge, capacitance, and thermal resistance. The datasheet also provides typical performance curves for power dissipation, switching times, and safe operating areas.
| On-Resistance Rds(on) | 0.042 Ohms |
|---|---|
| Operating Temperature Range | -55 to +175 °C |
| Power Dissipation (Pd) | 230 W |
| Thermal Resistance Junction to Case (RθJC) TO-220 | 0.65 °C/W |
| Package Types | TO-220AB, TO-263AB |
The available parts are HUF75842P3 and HUF75842S3S.
Yes, it includes Temperature Compensated PSPICE® and SABER™ Electrical Models.
