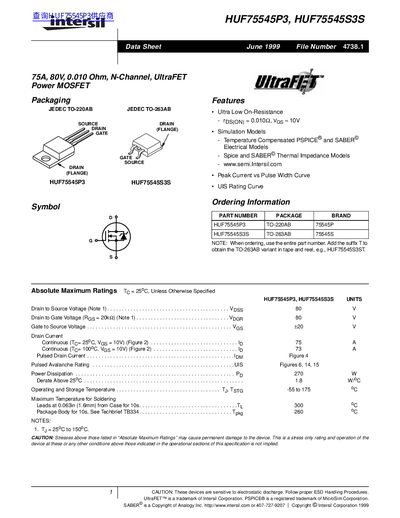

This is the datasheet of Intersil HUF75545P3, HUF75545S3S 75A, 80V, 0.010 Ohm, N-Channel, UltraFET Power MOSFET.
The document is a datasheet for the Intersil HUF75545P3 and HUF75545S3S N-Channel UltraFET Power MOSFETs. These devices feature a low on-resistance of 0.010 Ohms and are available in JEDEC TO-220AB and TO-263AB packages. The datasheet includes absolute maximum ratings, electrical specifications, and typical performance curves.
| Continuous Drain Current (Tc = 25°C) | 75 A |
|---|---|
| Power Dissipation | 270 W |
| Operating and Storage Temperature | -55 to 175 °C |
| Drain to Source On Resistance | 0.010 Ω |
| Package Types | TO-220AB, TO-263AB |
The device supports a continuous drain current of 75 A when the case temperature is 25°C.
The maximum power dissipation is rated at 270 W.
