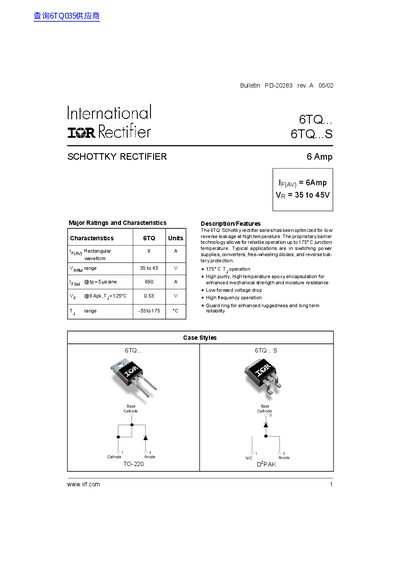

The 6TQ series is a Schottky rectifier optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175°C junction temperature. Typical applications are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection.
This document provides technical data for the International Rectifier 6TQ series of Schottky rectifiers. The series is optimized for low reverse leakage at high temperatures and features a proprietary barrier technology allowing reliable operation up to 175°C junction temperature. Typical applications include switching power supplies, converters, free-wheeling diodes, and reverse battery protection.
The datasheet details major ratings and characteristics, including forward voltage drop, reverse leakage current, and thermal resistance. It includes electrical specifications for various voltage ratings (35V, 40V, 45V) and provides thermal-mechanical specifications such as maximum junction temperature and mounting torque. Physical dimensions and ordering information for TO-220 and D2PAK case styles are also included.
| Average Forward Current | 6 A |
|---|---|
| Junction Temperature Range | -55 to 175 °C |
| Max. Forward Voltage Drop | 0.60 V |
| Max. Reverse Leakage Current | 0.8 mA |
| Max. Junction Capacitance | 400 pF |
The device can operate with a junction temperature ranging from -55°C to 175°C.
The maximum forward voltage drop is 0.73 V at 6 A and 125°C.
