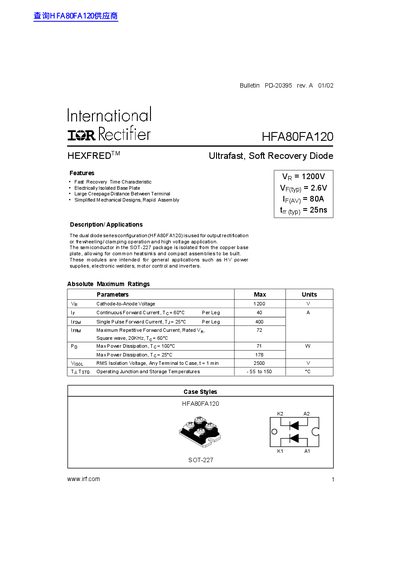

HFA80FA120 is a fast soft recovery diode from IRF company. It features a fast recovery time, electrically isolated base plate, and large creepage distance between terminals. This diode can be used in applications such as HV power supplies, electronic welders, motor control and inverters.
The International Rectifier HFA80FA120 is a dual diode series configuration designed for output rectification, freewheeling, clamping, and high voltage applications. It utilizes the SOT-227 package, which features an electrically isolated base plate to allow for common heatsinks and compact assemblies.
| Cathode-to-Anode Voltage | 1200 V |
|---|---|
| Continuous Forward Current | 40 A |
| Single Pulse Forward Current | 400 A |
| Maximum Power Dissipation (Tc = 100°C) | 71 W |
| Maximum Power Dissipation (Tc = 25°C) | 178 W |
| RMS Isolation Voltage | 2500 V |
| Operating Junction and Storage Temperatures | -55 to 150 °C |
| Weight | 30 g |
| Mounting Torque | 13 N*m |
The typical reverse recovery time is 25ns.
The maximum reverse leakage current is 2.0 µA.
The typical junction capacitance is 43 pF.
