KSC1845 is a NPN type transistor produced by Fairchild Semiconductor Corporation. Its maximum collector-emitter voltage is 120V, the maximum collector-emitter current is 50mA, the maximum collector-base current is 10mA, the maximum collector power dissipation is 500mW, and the maximum junction temperature is 150 °C. The storage temperature range is -55 °C ~ 150 °C.

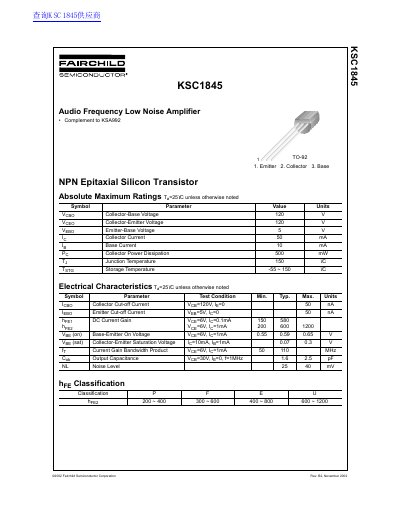

This document provides the datasheet for the Fairchild Semiconductor KSC1845, an NPN epitaxial silicon transistor. It details absolute maximum ratings, electrical characteristics, and typical performance curves.
| Collector-Base Voltage | 120 V |
|---|---|
| Collector-Emitter Voltage | 120 V |
| Emitter-Base Voltage | 5 V |
| Collector Current | 50 mA |
| Collector Power Dissipation | 500 mW |
| Junction Temperature | 150 °C |
| Storage Temperature | -55 ~ 150 °C |
| Current Gain Bandwidth Product | 50 ~ 110 MHz |
It is an Audio Frequency Low Noise Amplifier.
The KSC1845 uses a TO-92 package.
